Before the situation review: "Sister paper suddenly came to the door unexpectedly did not think she actually wanted to ...", said last time, WeChat on a hobby fitness, good-looking sister wanted me to help with a computer, for this The errands I have always refused to resign, two days later she said that she was afraid that the computer performance is not enough, and said that her family is not bad money ...
[PConline Talk] This is what happened. When I was about to order a beautiful woman to buy i7+GTX1060, one of her so-called friends told her to go to TITAN X. I suddenly smiled... what a ghost she was. How could I know TITAN X? How could I ask to install TITAN X? But when the beauty told me her address, I was relieved...
NVIDIA TITAN X Introduction:
NVIDIA TITAN X is a new brand under NVIDIA. The brand series does not have the “GeForce GTX prefix†and is named directly after NVIDIA TITAN X. It can be distinguished from previous generation Maxwell GeForce GTX TITAN X. Its performance is even more exaggerated than GTX1080. It is NVIDIA's current strongest home-grade graphics card.
I'm afraid everyone forgets that I sent her WeChat circle of friends screenshots again.
That's what happened--
The following content relates to the privacy of beauty and I have more, it is not on the dialogue screenshot ...
On Saturday morning, I used my backpack full of tools as I expected, and I thought I would like to have a beautiful encounter with my beauties. I worked hard and installed a super high-performance computer. She sat next to me and gave her fruit. (Think about it. Little excitement) If you can give her an impression of a reliable IT man, maybe a good marriage is slightly ~ (squinting) (squinting) ha ha ha ha ha ha.
However, it was only after I got down from the bus that I found a cruel fact... Nima lived in the villa area of ​​Tianhe, Guangzhou (it was stunned). I didn't have to think too much about it.
In front of the villa area, I encountered the first difficulty...
The security guard wearing a suit arm thicker than my thigh
The security guard looked at me from head to toe, white T-shirts, jeans, sneakers, and a backpack tool. “What are you doing here? Show your credentials.â€
- "I went to a friend's home computer, she lived in District C 50X, the name is HWX, give you an ID card on the line?"
After the security elder brother recorded my ID number, he asked a lot of things. It was a lot of trouble. Fortunately, I didn't look like a bad person. After all, I still let me in. (The security guards were very fierce and scared me.)
This is not really a big one, there are special pick-ups in the community... However, I didn’t dare to run around. I quickly went downstairs to the beauties and got a call to get me home. She was wearing it that day. Black skirts and slippers ... are more beautiful than photos.
The first time I was in such a house, I only had her alone at the house... After some chilling, I removed the kit and asked where she had put her computer accessories. She took me to the study room at home. ...
(There should be luxury pictures here, but I don't dare to shoot, I don't want to look too far.)
After the various courier boxes were detached, everything was picked up. The beauties started sitting next to me and talked with them. But after half a minute passed, I could put my computer down too much and put down a fruit plate. The room was watching TV.
Then came the long process of installing the computer. I entered the high-play mode of “without listening to the windows, and only with the computerâ€, and I was immersed in the world of high-level hardware. The time passed by one second and I knew that the computer had entered the system unconsciously in the afternoon. I gently shouted "WX, the computer was installed." However, no one responded.
I tapped her room lightly
She said in a lazy voice in the room that she was still asleep, told me to call myself and waited for me to go to dinner. |||→_→
This core scale, this core frequency, TITAN X is really wonderful. Anyway, there is nothing to do, then put a 3DMARK running and running it, God-level configuration to think a little excited.
Fortunately, my professional knowledge tells me that installing mobile hard drives for testing tools is to carry them with you... (We hurriedly liked it)
Test passed
It is indeed a contemporary single-core card emperor, this performance is simply to meet all my expectations of Card Emperor, ah, need to know that GTX1080 score is also about T7000, U5000, the new TITAN X reached the level of T9500, T6800! There are no rivals yet. It is the presence of the peak of all game graphics cards.
In the beautiful home test, the feeling is different, ah, there is a kind of nervous feeling, what say I nervous? If she saw me, I would say that testing the stability of the computer is not enough! ? Hahaha.
Due to the limitations of the test conditions, we couldn't test more projects. Fortunately, our Beastmaster also bought TITAN X. When he returned Monday, he took his card and continued to measure it. Haha I was ready to go to the B station to pass the time. when.
She woke up
Do not ask why I fooled everyone with such a map. Whoever dared to shoot it. It was almost as if everyone had intended.
- "The system and commonly used software are installed. As for what kind of game you will install yourself, then you can do it yourself."
- "Well, thank you so much now. We haven't eaten lunch until three o'clock. You wait for me to change clothes and we go to eat."
(Oh, you also know that things aren't usually that simple.)
However, it is really that simple
After the beautiful woman finished driving, she sent me to Zhengjia Plaza to have a meal...
As usual, I received this
In fact, I'm used to it
The installation of the beauty machine has come to an end. However, is there still nothing left to complete? ? TITAN X's complete evaluation Do you not want to finish? Wait for work on Monday and finish the TITAN X test.
Regression: Comparison of Performance Tests
3DMARK's performance has finished running in her sister's home and she will come back and add data on the remaining cards.
It can be seen that on the Time Spy project that represents DX12 performance, the performance of TITAN X is 137% of that of GTX1080. It is necessary to know that GTX1080 is already very much alive. TITAN X is really bad, but of course its price is too high. - Domestic price of 9699 yuan, enough for you to buy two GTX1080 or buy three GTX1070...
Fire Strike Ultra's performance is still 137% of GTX1080, Fire Strike Ultra's performance is almost the performance of graphics 4K gaming performance, if GTX1080 is still a bit pressure on a small number of 4K games, then TITAN X is to complete the existence of this part of the defect .
4K game performance test:
Given the positioning of TITAN X, 1080P is not tested. If it is used only for 1080P, GTX1080/70 is completely free from problems. It is not necessary to spend so much money (except faith).
The game test summary: According to our consistent game frame rate, it is absolutely smooth to reach 60 frames or more. Although many stand-alone games can do 30 to 40 frames without feeling the Catton, 60 frames are still An important watershed. The 60-frame source is the previous monitor. Most refresh rates are 60hz. Although there are high-end e-sports monitors that can achieve 144Hz, the industry is still playing 60 frames as an important standard for playing games.
It can be seen that these games are very hard to eat after driving 4K resolution. The previous N-Kaka King GTX1080 was unable to run out of 60 frames under the full-effect settings, but TITAN X really achieved it. Almost all of the games just meet this requirement, but this is already the most powerful and expensive game video card at present, and we can't criticize any more, because other cards can't beat it!
Full load power test:
The old rules, testing the full power consumption of the entire platform and standby power consumption, through the comparison of the overall power consumption to see the power difference between the graphics card.
Due to the increase in core size and BOOST frequency is still high, its power consumption is certainly second to none (high). After the i7-6700K is equipped, the power consumption at full load reaches 316W. Therefore, if you are using the new TITAN X, you are recommended to use 500W and The above power supply, after all, 400W and 500W power supply is not a lot of money.

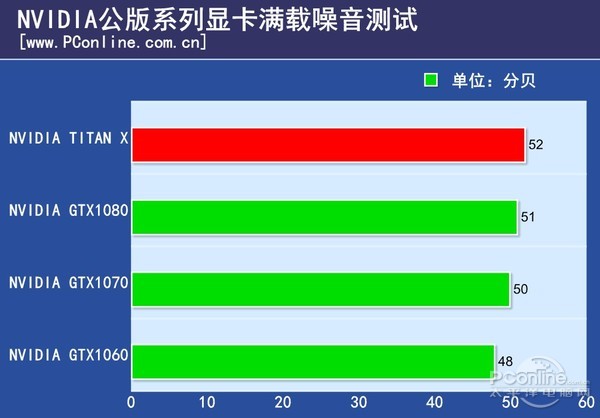

Full load noise test:
Because of the same heat dissipation scheme, the noise control capability is very similar. Under full load, TITAN X's noise is around 52 decibels. For this kind of performance monster, it is quite good, and we have to admire NVIDIA's design capabilities.
About noise:
0 - 20 db: very quiet, almost imperceptible; 20 -40 db: quiet, like whisper; 40 - 60 db: normal general indoor conversation; 60 - 70 db: noisy: denervated; 70 -90 db: Very noisy, nerve cells are damaged. 90 - 100 db: Intensified noise, impaired hearing; 100 - 120 db: Unbearable, one minute or temporary deafness. 120 decibels or more: Extremely paralysed or fully paralyzed; 300 decibels or more: People with a radius of 20 km cannot repair deafness.
Full load temperature test:
We use 3DMARK to let TITAN X be fully loaded. We can see that the graphics card temperature peak is 78°C, which is a little lower than GTX1080. What's more important is that the new TITAN X is not open to AIC non-public models, so you want to choose heat dissipation. There is no chance for a more aggressive version, unless you have modified your own water, but after the water is cold, the light on the top of the radiator will be slightly less.
Comprehensive evaluation results summary: far stronger than GTX1080 is definitely the single-core card
In fact, the evaluation of TITAN X has long been a lot of enthusiasts at home and abroad, and this happens to happen to beauty buy TITAN X thing, the way to complete the TITAN X evaluation.
TITAN X's strength is so strong that it is also expected, the overall 32% stronger than the GTX1080, there is nothing to evaluate, anyway, is the most powerful game video card, of course, if the GTX1080Ti after a variety of non-public version, It may be possible to compete with this TITAN X, but it is certainly not possible to surpass it.
PConline graphics ladder diagram:
Can only say that it is a well-deserved card emperor, AMD there is no time to compete with the graphics card
Evaluation summary:
First of all, the video card is very good (is it already the best okay?), Tycoon sister used to live, play games, singing in short why doing it really powerful, and also thought she was making friends, but in any case so rich, Just as happy as she was, she also earned personal feelings, not too bad (squinting).
Back to the product itself, the front also said many times, is a well-deserved card emperor, 12GB GDDR5X memory, ultra-high core size can also control the frequency of this very high level (this pascal architecture TTX Is 1418 ~ 1531MHz, the previous generation Maxwell's TTX but only 1000 ~ 1076MHz ah), but also use this version of the radiator to suppress the core at 78 °C! Can't help NVIDIA's super black technology.
However, this is only the core product of the GP102. The truly strongest and most complete GP100 should not be a desktop-class product. NVIDIA TITAN X is undoubtedly the strongest 4K gaming graphics card and VR graphics card, although dual GTX1080 may be able to win a battle, but the duality of the two-way will be slightly worse, but also less and less people play two-way.
Domestic price of 9699 yuan, a piece of TITAN X top two GTX1080, top three GTX1070, price is certainly not high, but this card market has long been in short supply, and the opponent has no product to compete, so it is possible to reverse the market is still very Acknowledge this price.
Chasing non-public version of the price can wait GTX1080Ti:
Recently, the voice of 1080Ti has also been more and more unheard of. Originally, many people expected that Huang Lai made a 1080Ti at CES2017. However, it was not as we wished. Maybe Huang Huang wanted to wait for AMD to make a move after Radeon VEGA?
GTX1080Ti will be positioned between GTX1080 and TITAN X as expected. The price will be around 7,000. After selling for six months, it will fall to the 6000 range. This should be the case in the past.
Test platform description:
ASUS ROG MAXIMUS IX FORMULA Reference Price: Loading... Image Reviews Quote Parameter Overview
ASUS ROG M9F is currently the top Z270 motherboard, supports the latest 7-generation Core CPU, there are fun LED lights, detailed evaluation please poke here!
M.2 SSD: Samsung 960EVO 1TB Graphics NVIDIA TITAN X
NVIDIA GTX1080
NVIDIA GTX1070
NVIDIA GTX1060
In order to ensure the consistency of the test before and after, we use the same CPU i7-6700K, dual-channel high-frequency memory, the other are conventional high-level hardware.
Extended Supplement:
GP102: More Powerful Than GP104 Specifications
The GeForce GTX1080 is a high-end graphics card using the GP104 core. As the successor to the GM204 core GTX980, the GTX 1080 uses a more advanced 16 nm FinFET fabrication process and better performance GDDR5X high-speed memory. As a result, the GTX 1080 increases by an average of up to 30% over the GM204 core GTX 980 Ti and TITAN X. . Coupled with the professional-grade graphics cards we know that use the GP100 core, people mistakenly believe that there will be no more advanced desktop graphics.
The final result is that NVIDIA released a GP102 core with GP100 core and GP104 core. GP102 is similar to GP104, but its performance is more powerful. The number of GPC units has been increased from 4 to 6, so the number of SM units has also changed from 20 to 30. Each SM unit has 128 CUDA cores, so the GP102 has up to 3,840 CUDA units. The GP102 core has 12 billion transistors and the process is extremely complicated. This also causes NVIDIA to cut off the 2 SM units of the TIAN X. Each SM unit has 8 texture units, that is, there are 224 texture units that can be enabled. CUDA cores Reduced to 3584.
The TITAN X basic frequency is 1417MHz, and the accelerating frequency is 1531 MHz. It has FP32 floating-point computing capability of up to 11 TFLOPS, which is about 23% higher than the GeForce GTX 1080.
Undoubtedly, GP104 has obvious advantages in the 4K picture due to the larger capacity of video memory. However, GP102's more powerful material/texture potential definitely requires rebalancing. Therefore, the GP102 core contains 12 32-bit memory controllers, each containing 8 ROPs and 256 KB of L2 (consistent with the GP104), a total of 96 ROPs and 3 MB of shared cache, a 384-bit width, and a memory capacity of 12 GB. Frequency 10Gb/s.
GPU-Z
The theoretical bandwidth of the graphics card is 480GB/s (50% increase compared to 320GB/s for GTX1080), but the effective throughput should take into account Pascal's delta color compression improvements will be higher.
The core scale is substantially higher than GTX1080, and the frequency is only a little bit lower. 11TFLOPs is the highest number of single-card floating-point operations on the planet. The memory is also 4GB higher than GTX1080, for professional applications, 4K games. VR game support will be better.
Graphics Appearance: Black Belief Skin is more mysterious than GTX1080
Faith-level graphics
SLI Goldfinger
Belief lamp 6+8Pin power supply
NVIDIA Standard Display Output Interface & Dual Card Slots
The same graphics backplane as GTX1080
The above is all the evaluations of this NVIDIA Pascal TITAN X. It is very powerful or not. The live broadcast of her sister is awe-inspiring.
The above-mentioned sister story is purely fictional. If there is any similarity, it is real and true.
