The first 50-inch LED backlight Hisense 3D TV 50K316 Reviews

1 Hisense LED50K316X3D evaluation after the first evaluation

[PConline evaluation] In today's highly competitive market environment, Hisense has introduced a 50-inch smart 3D LED LCD TV, the first thing to declare is that this paragraph is not the true sense of the LED, but the size of the first use of LED backlight design After all, LED TVs have not yet been in mass production, and currently 50-inch products on the market are mostly plasma TVs. Hisense 50-inch LED LCD TVs not only fill the gaps in the specifications, but also provide new options for consumers who prefer large-screen LCD TVs. . So, what exactly does this 50-inch 3D LED TV do? Next, please see its evaluation performance.

Product Model: Hisense LED50K316X3D
Reference Price: 7599 yuan

First, Hisense LED50K316X3D first evaluation after the test

In the past, 46/47-inch panels were manufactured using 7.5-generation cables. Each mother substrate can also be cut into 6 wafers. Now, 7.5-generation cables are used to produce 50-inch panels. The same holds for 6 cuts. The substrate utilization rate can be increased from the original 90% to 99. %the above. As the product size increases and the production line does not change, the utilization rate of the substrate continues to increase. It is for this reason that the cost of Hisense's 50-inch LED backlight TV panel is low, so the product's cost performance is high.

Hisense 50K316X3D has a 3D function. In order to allow consumers to experience the most realistic 3D effects, shutter-type 3D technology is adopted and 2D to 3D functions are added. In addition, the intelligent application is another selling point of this TV, mainly reflected in the use of a large number of types and applications, China TV online video playback, multi-screen interactive, somatosensory games and Internet access. Let the author reveal the true colors of Hisense 50K316X3D for everyone:


Hisense LED50K316X3D picture series evaluation forum quote

As one of the hot topics in the development of color TV industry this year, smart TV is naturally the most concerned by consumers. Hisense 50K316X3D has a 50-inch large screen and covers a wide range of smart applications, including video, entertainment, games, news, home education, etc., which are freely available for users to download, add, delete, and update.

Hisense LED50K316X3D main parameters and prices
model
LED50K316X3D
Screen size/inch
50
Resolution
1920×1080
Backlight
led
Whether to support 3D
Yes
3D Type Shutter USB 2.0 Streaming Media
stand by
Web browser
stand by
China TV
stand by
app Store
stand by
HDMI/Group
2
Weight/kg
21kg (without base)
Size/mm
1150×688×56mm (without base)
Reference price / yuan
7599(2012-03-15, Guangzhou)

Because Hisense 50K316X3D is a smart 3D TV, and the picture quality performance and 3D effect are also the focus of this evaluation, the author will go from point to point, gray level, color performance, dynamic contrast, high-definition television, power consumption, streaming media playback, network functions, etc. In terms of evaluation, the evaluation of the picture is for reference only. Let us immediately enter the evaluation article.

2 Hisense LED50K316X3D Watch Appreciation Back to Top

Second, Hisense LED50K316X3D Appearance Appreciation

Hisense 50K316X3D adopts the traditional narrow border and third-class border design in appearance design, which combines the characteristics of the thin and light LED body. The overall color is black, and high-reflective materials are used on the frame. The 50-inch large screen looks like a black glossy glass mirror, beautiful appearance.


Hisense LED50K316X3D picture series evaluation forum quote

The top left of the Hisense Hisense 50K316X3D is still traditionally printed with Shanghainese TV's logo “Anyview”. There is nothing special about the bottom left. The special features of the TV are printed on the lower right, including 3D, LED backlight, SRS audio, and power indicator. The border is made fine, and the white bottom is added, which makes it look better.


Hisense 50K316X3D frame detail section

The silver Hisense Group logo "Hisense" is printed on the bottom of the fuselage, which is in stark contrast to the black tone of the fuselage and highlights the existence of the logo. The base is designed to use a square rotation, which allows users to watch television programs from different angles. The base surface is very smooth and bright. The overall appearance is stylish and elegant.


Hisense 50K316X3D base

There are five buttons on the back of the fuselage, which are menu, signal source, volume, program and power switch. It is worth noting that a TV power switch is also hidden under the fuselage.


Hisense 50K316X3D OSD button

Because Hisense 50K316X3D uses LED as the backlight, the body has a thin and light feature. By contrasting with a bank card, it can be found that the body thickness is only about a quarter of the length of the bank card. In thickness control is still quite in place.


Hisense 50K316X3D side

On the back of Hisense 50K316X3D, there are multiple heat vents, which are distributed on the upper, middle and lower parts of the fuselage. The advantage of this is that even if the user uses the TV for a long time, it will not cause too much heat and damage the TV. The interface area design is arranged in the "L" shape on the right side of the display and is divided into a side interface area and a bottom interface area.


Hisense 50K316X3D on the back


Hisense 50K316X3D back label

Hisense 50K316X3D interface area is equipped with 2 x HDMI1.3, 1 x network interface, 2 x USB, 2 x video input, 1 x audio and video output, 1 x coaxial, 1 x VGA, 1 x headphones, 1 x components. The number of interfaces is moderate enough to meet the needs of users in daily use.


Hisense 50K316X3D under interface


Hisense 50K316X3D side interface

In the remote control design, Hisense 50K316X3D is still relatively traditional, and does not have much of a feature. Larger buttons, better rubber feel


Hisense 50K316X3D remote control

From the appearance point of view, Hisense 50K316X3D as the overall tone of the black, elegant and generous is to give people the first impression. LED is used as a backlight source, and the control of the body thickness is in place. As a mid-to-high end product, Hisense 50K316X3D still meets the aesthetic demands of mass consumers in terms of appearance. It will neither be too traditional nor too monotonous.

3 Hisense LED50K316X3D menu, peer to peer test back to the top

Third, Hisense LED50K316X3D menu layout

Hisense 50K316X3D has a monotonous interface in the menu design. It mainly includes six columns, including programs, media, smart TVs, settings, demonstrations, and help. Each of these sections is expanded to include several major contents. For example, the program column contains a list of broadcasts, sources, program guides, favorite lists, and program reservations. The most appealing smart TV content includes network settings, app stores, TV broadcasts, Web browsers, and wireless screens. In the setting column, you can set the TV image, sound, and the ratio of the screen display.


Hisense 50K316X3D main interface

Hisense 50K316X3D provides six different scenes for standards, sports fields, game rooms, movie theaters, concerts, and studios. Users can also set suitable scenes according to their own needs. In order to let users know more intuitively, the author chose the standard, sports field and cinema scenes to provide reference for comparison.


Hisense 50K316X3D standard mode


Hisense 50K316X3D playground mode (left) Hisense 50K316X3D cinema mode (right)

Fourth, Hisense LED50K316X3D point to point test

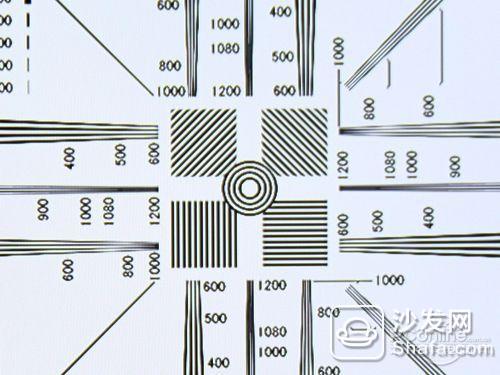

In the Monoscope full HD 1080p signal test, Hisense 50K316X3D in the horizontal line, vertical line, slash, circle and other lines on the line is very clear, there is no basic phenomenon of overlap, showing its peer-to-peer effect is still good.


Hisense 50K316X3D point to point test

Hisense LED50K316X3D has no special features in the menu, and it is almost the same as the previous models. The advantage is that it is relatively simple to operate and provides 6 different scenarios that can better meet user needs, and the peer-to-peer performance is fairly good.

4 Hisense LED50K316X3D 3D screen effect back to the top

Five, Hisense LED50K316X3D 3D screen effect

Hisense 50K316X3D is using shutter-type 3D glasses, in the design to be beautiful and not flash 3D glasses and also in the price is not too flash 3D glasses, 3D effect is better than the outstanding quality, but glasses need to be charged, It is generally believed that this will have radiation and it is not good for the eyes. However, in general, if you do not use it for a long period of time, little radiation will not cause much impact on human health. Everyone can purchase it safely. Hisense 50K316X3D is equipped with two pairs of 3D glasses. Couples may wish to buy a 3D movie and TV together at home.


Hisense 50K316X3D 3D Glasses

The author played 3D video is played by the Sony Blu-ray player S470. The 3D image is formed by the distance difference between the left and right eyes. When we don't wear 3D glasses, the picture we see with the naked eye is a blurry ghost phenomenon, and the degree of ghosting varies from scene to scene. Therefore, the 3D rendering effect is also different.

Through 2D screen and 3D screen screen shot, we can clearly see the difference in brightness and depth of field between the 2D screen and the 3D screen. Obviously, in the same situation, the brightness of the 2D screen is higher than that of the 3D screen. .


Hisense 50K316X3D 3D screen (naked eye shot)


Hisense 50K316X3D 3D screen (photographed through glasses)

In terms of viewing angle, there is a deficiency in the conventional shutter-type 3D glasses. If the angle of the 3D glasses is not 180°, the resulting visual effects will gradually become poor or the interface will be black. However, this year, Hisense Group has stepped up technical research and development. Even if the user does not view it through 180°, it will not cause the screen brightness to decrease or even appear dark. This little bit will greatly improve the user's experience.


Hisense 50K316X3D 3D screen multi-angle test

In terms of 3D graphics, the depth of field of Hisense LED50K316X3D is relatively strong, which may be related to the fact that the author has adjusted the depth of field to a larger value. For the shutter-type 3D, Hisense LED50K316X3D has greatly improved the angle, the brightness of the glasses from the lateral to vertical attenuation is not obvious, the overall viewing feel is more comfortable.

5 Hisense LED50K316X3D grayscale, color, dynamic test back to the top

Sixth, Hisense LED50K316X3D gray scale comparison test

Since the screen shot has undergone the necessary software processing and is affected by the actual effect of the netizens' display, the screen displayed on the screen will eventually differ from the actual effect of the TV. Therefore, the actual effect is based on the author's text description. The author uses a Hi-Definition Reference Disc test disc, Sony PlayStation 3 as a Blu-ray player. The digital camera used was a Canon 50D with a Canon EF 17-40mm F4L USM.

The first step is to perform a test of 15 gradient grayscale tests. As shown in the figure below, Hisense 50K316X3D is still undersufficient in this grayscale test. The boundary between 2nd and 3rd order has been partially merged, and the difference is not obvious. It's even harder to distinguish. The 13th, 14th, and 15th orders are basically integrated together.


Hisense 50K316X3D Grayscale Comparison Test

In the black gray tolerance test, the texture of charcoal can be clearly seen in the charcoal backlight position, and the texture of the charcoal in the light is relatively clear. The test result of Hisense 50K316X3D in this respect is still satisfactory.


Hisense 50K316X3D Black Latitude Test

Seven, Hisense LED50K316X3D color performance test

In Hisense 50K316X3D's TV color performance, the screen colors show brighter colors. There are some shortcomings, in the three colors of the test, there is a clear distinction between the depth but the screen performance is not fully differentiated, especially in the yellow and blue. This aspect needs to be strengthened.


Hisense 50K316X3D color performance test

The color of the clothes on the two ladies showed a slight deviation, and the lady in red clothes was slightly more obvious. However, Hisense 50K316X3D has improved image settings in the system settings, users can adjust the actual situation.


Hisense 50K316X3D color performance test


Hisense 50K316X3D color performance test

Eighth, Hisense LED50K316X3D dynamic picture test

In the dynamic test, netizens need to pay attention to the front locomotive and the car's license plate. Under the same shooting parameters, the two were compared and photographed to test the real dynamic effect of Hisense 50K316X3D.

In this high-definition video, we need to observe the contour of the car body, locomotives, and license plates. Obviously the phenomenon of smearing still exists, as can be seen from the outline of the car body. For the license plate, it can still be clearly seen. It shows that even if the Hisense 50K316X3D is less than adequate in dynamic testing, it does not affect the smooth playback of the video. Users can clearly see the dynamic content of the screen.


Hisense 50K316X3D dynamic picture test

Hisense 50K316X3D performed somewhat poorly in 15 gradient grayscale tests. The difference in color between 1-3 and 13-15 is not obvious. The color is bright, and the dynamic aspect is still satisfactory.

6 Hisense LED50K316X3D intelligent function test back to the top

Nine, Hisense LED50K316X3D intelligent function test

Hisense 50K316X3D includes applications such as smart app stores, web browsing, Wahiti TV, real-life somatosensory games and wireless screens in smart TVs, online video playback, download and use of smart applications, game interaction, home education, etc. Web browsing and more. Meet the needs of users in all aspects of entertainment and information in daily life.

app Store

Hisense 50K316X3D smart embodiment of which is a proprietary Hisense App Store, users can download their own software applications through the application store. The application interface design of the TV is relatively simple and traditional, with a black background as the background. A rectangular box is set in the middle to display the user's downloaded application. There are 5 sections in the Hisense App Store, which have application management, application classification, top ranking, latest launches, and self-service. Make it easy for users to search, download, sort, and manage downloaded applications. Because there is a charge for the use of departmental applications, users can recharge and query accounts in the self-service section.


Hisense 50K316X3D smart application interface


Hisense 50K316X3D smart application interface

China TV Platform

Hua Digital TV is one of the important contents of Hisense Smart TV application. The main content of Hua Digital TV is rich in content and covers a wide range of contents, including weather forecasting, the latest film and television, online video on demand, e-magazine, children's world, TV school and other latest social hotspot information. The user only needs to sit on the sofa and use the remote control to browse various information and enjoy the different viewing vision that the big screen brings.


Hisense 50K316X3D China TV Main Interface


China TV Magazine

Huada Online Video On Demand features a wide variety of content, including television and news. And more detailed in the classification, video content update speed. By surfing the Internet through the TV, you can watch the latest movies and TV, and the buffering speed is still relatively fast, but only occasionally the phenomenon of Caton appears but the impact is not great.


Hua Digital Online Video On Demand


China HD Video Play on Demand

Web browsing

Web page browsing is another important content of Hisense 50K316X3D intelligent. You can browse web pages directly from your TV. The slight disadvantage is that the buffering speed is relatively slow. However, browsing the web on a big screen is indeed a form of surfing.


Hisense 50K316X3D Web browsing


Hisense 50K316X3D Web browsing

In terms of intelligence, although there is a slight gap compared to the flagship model, the app store provides a wealth of software. The China Digital TV platform also has very useful information and video content. Web browsing is also very practical.

7 Hisense LED50K316X3D HD video, streaming media test back to the top

Ten, Hisense LED50K316X3D high-definition video test

In the high-definition video test, I chose to play Blu-ray high-definition disc "October Besieged City" and "Private Soldier". In "The Besieged City in October", there are more details of the characters and close-ups of the characters' expressions. From the first picture, we can clearly see the details of the actor's face, such as cinders and glasses with tears. Secondly, in the expression of the character's expression, it is very natural and the picture is real.


Hisense 50K316X3D HD video test

The second video is "Private Soldiers." The film has a large number of dark colors as the background, and the background is dark. However, from the figure, we clearly see that even in the dark background with low brightness, you can clearly see the details of the characters and facial expressions, especially the first and third images.


Hisense 50K316X3D HD video test

XI, Hisense LED50K316X3D streaming media function test

Hisense 50K316X3D has a USB streaming media playback function, in the video format support, it supports avi, mpg, ts, mkv, mov, dat, rm, rmvb, flv, mvc format, support for music playback and e-book reading, but e-books only Limited to txt format.

The main interface of streaming media is mainly dark blue and the interface is simple. It is divided into four major categories: movies, music, images, and text. Users can choose the streaming media content themselves.


Hisense 50K316X3D streaming media main interface

Video format support, Hisense LED47T36X3D support avi, mpg, ts, mkv, mov, dat, rm, rmvb, flv, mvc format has basically covered most of the current mainstream formats, playback smooth.


Hisense 50K316X3D mov video format playback


Hisense 50K316X3D mkv video format playback

E-books use black as the background and display white fonts. The overall feeling is simple and clear. Press the down arrow to page through


Hisense 50K316X3D View eBooks

In the HD video test section, the test results of Hisense 50K316X3D are still satisfactory. There is no clear representation of character details because the background is dark and the brightness is low. The overall picture is natural and real. In the aspect of streaming media design, Hisense 50K315X3D has no gorgeous interface and adopts a relatively traditional and interface design style. Can quickly play streaming media content, support more formats to meet the needs of users at this stage.

8PConline evaluation room summary

Twelve, PConline evaluation room summary

Hisense 50K316X3D is in the mid-to-high end in product positioning. It is a 50-inch LED smart 3D TV launched by Hisense, adopting shutter-type 3D technology to present users with the most natural and realistic 3D images. In terms of smart applications, it includes application stores, China TV, Web browsing, wireless screens, and real-life somatosensory games. The content is rich and covers a wide range. In terms of streaming media, the interface is traditionally monotonous, but it can play streaming media content smoothly. The overall Shanghai letter 50K316X3D is a cost-effective television.


Hisense LED50K316X3D picture series evaluation forum quote

Through the detailed evaluation of the above multiple projects, PConline evaluation room's evaluation performance of Hisense 50K316X3D is summarized as follows:

Hisense LED50K316X3D evaluation advantages and disadvantages summary
advantage
Shortcomings
1, the appearance of noble with some fashion sense;
2, can achieve multi-resolution full HD point;
3. The 3D picture is affected little by the angle change;
4, smart applications rich and practical;
5, USB streaming media compatible format comprehensive;
6, the menu operation is simple and smooth.
1, the image is a bit too bright.

PConline evaluation room summary:

Hisense 50K316X3D appearance uses a black high light narrow border design, square rotating base, beautiful and generous. In the 3D technology, shutter-type 3D technology was adopted, the 3D effect was outstanding, the picture was natural, and the disadvantage that the shutter-type 3D technology could only watch 180° was eliminated. It is rich in intelligence, practical and strong, covering a wide range, to meet the daily needs of consumers. Streaming media content plays smoothly and supports a relatively large number of formats. Although Hisense 50K316X3D is new, but the price is relatively affordable, the current offer is only 7599 yuan, users need to buy large-screen TV can be considered. [Back to Channel Home]
