This article is a sequel to further tossing. If you want to understand the foreplay, you can first look at my previous article, "When ITX met the "Rui Long" and "North Star", the ultimate small steel cannon or small boiler? 》 In the last article, I recorded my entire process of trying to set up the Ruilong Cannon with Ryzen 5 1600 and RX580. The whole installation process went smoothly, but after the final boot test, I had to use special methods to control 3A. The "high energy" of the platform was to avoid the tragedy of the small steel cannon being turned into a small boiler. To be honest, I regretted some of the last tossing choices. I believe that you can also feel my feelings from the text. , so this machine is not installed to play games, I did not even open the boot several times.
But after all, it was spent money on something, and it was not a matter of putting on ash, and now RX580 actually burst on the price of 3999. The video card pot, simply replace the chassis or graphics card remanufactured some to see if it can save this Ruilong cannon.
Ruilong AMD Ryzen 7 1700 processor 8-core AM4 interface 3.0GHz boxed 2199 yuan AMD Ryzen series CPU using 14nm process to build, listed the first three models are Ryzen 7 1700, 1700X and 1800X. Among them, 1700 TDP 65W, two high-end models 1700X and 1800X are 95W. The entry-level Ryzen 7 1700 uses SMT multi-threading, each core has two threads is 8C16T, 3.0 ~ 3 Jingdong direct link to encyclopedia Before using the Ryzen 5 1600, with the large file STB120-PLUS cooling and Qiao Sibo FR201 fan, due to the impact of the chassis, thermal performance is limited, the effect is estimated and the original cooling effect is almost the same, but the noise may be smaller. But at the time, in the Chaspod VR1's chassis, it looked pretty, and the daily application of the game was enough. Performance was not the focus of my replacement.
Say you might not believe that the original reason for replacing the ryzen 5 1600 with the ryzen 7 1700 is to have 1700 original fans. Of course, this can not be the whole reason, or you can directly go to the original one to cool the heat, it is not necessary to buy a whole set. First of all, let me mention why we no longer use the STB120-Plus before, and we are in urgent need of the original heat dissipation of 1700. This is because the 1700 original heat and my later re-selected chassis to take more, as for the chassis model here I sell Guanzi, you look down slowly.
More importantly, I think that in order to prepare for the arrival of the X299 or X399 and VEGA, I decided to leave only this small steel cannon to write or use it for my wife. After playing the game, I use the X299 or X399 . Comprehensive recent special events from JD's 1700, I have a little calculation, in fact, you can do without losing a lot of money to experience a 1700.
Ruilong full range whether it is my own or in a friend that I have experienced, in fact, the cost of the 1700 is the highest, after all, 2000 yuan a super CPU can be comparable to the original priceX, although Biostar this ITX The space reserved for the overclocking of the board is very limited, but judging from my current "pitfall" situation, after the listing of other ITX mainboards, I think the situation should replace the X370GTN.
PS hardware is really enough to use, not to pursue high configuration or cost-effective, choose the most important for their own, think of good needs, 2000 dollars can be solved for the quality of 3000, but must not be higher for the so-called The cost-effective 4000. Of course, if you like to have energy and time to toss, to pursue higher performance, and to bear the ability to make mistakes and spend money, it is another matter, after all, carrots and vegetables have their own love.

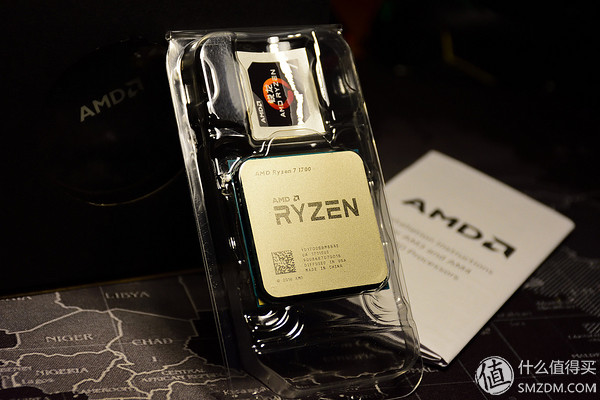

Here's a box to show this RYZEN 7 1700 from AMD.
Compare the two original fans, the original fan number of RYZEN 5 is C, and the original fan number of RYZEN 7 is B. It can be seen that AMD has a fan with higher positioning number A that is not listed. The original fan of RYZEN 7 is one turn larger than the original fan of RYZEN 5. The heat sink is also thicker and the area of ​​copper on the contact surface is larger. Therefore, the original radiator of RYZEN 7 1700 is better than the radiator of RYZEN 5. In terms of practical results, the RYZEN 5 heatsink support RYZEN stable at 3.7GHz is better, 3.8Ghz is the limit, what is the instability of the baking machine, although RYZEN 7 1700 more than 2 core, but its original The use of a heatsink to stabilize the 1700 at 3.8GHz is not a problem.
Yingchi (Galaxy) GTX 1070 GAMER 1620 (1822) MHz/8GHz 8G/256Bit D5 PCI-E graphics card 2999 yuan Jingdong direct link Before starting with the RX580, I had an ASUS ROG STRIX RX480 and a GALAXY GTX1070GAMER, but all of them were too long to plug in the RX 580. Fortunately, after the 580 "rich mine" came, so this wave to buy graphics cards to start It's very profitable.
Sapphire's RX580 Ultra Platinum is actually a good heat sink, but VR1 this chassis has greatly increased the graphics card's thermal stress, it can be said is not selected on the graphics card, it can be said is not selected on the chassis, in the end is to change the card or for the chassis What? This problem is obvious - change the chassis!
The chassis I chose this time will not exert any pressure on any graphics card in my hand, but GALAXY GTX1070GAMER and ASUS ROG STRIX RX480 have better effect on the cooling of the graphics. Among them, Only GALAXY's GTX1070GAMER's "GAMER" belief lamp can be exchanged for disassembly and reversal, so I'm ready to use my GALAXY GTX1070 GAMER.
Then the question came again... Why must we change the direction of the "belief lamp"? Or because of the chassis ... but still do not explain, such as the introduction of the chassis when you naturally understand.
PS this wave of "rich mine" so many people do not card ... ... whether it is RX480,580 or GTX1060, 1070, indeed for the game players just need a headache, and even can only be used to select the thousand or less graphics card or more than 4000 graphics card This undoubtedly confused the DIY market, but after a period of madness, the prices of various virtual currencies are falling. I suggest that we can observe for some time, and the special mine card of the GTX1060 is also coming out. I believe we really need a video card. A friend who plays the game will be able to keep the moon open.

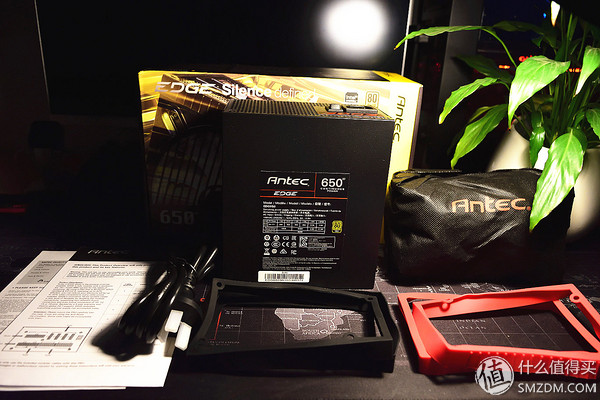

Antec rated 650W EDGE650 power supply (135mm white fan / 80PLUS gold / full module / support SLI / support back line) 899 yuan Jingdong direct link Previously used on the Qiao Sibo VR1 is a pure white Zhenhua LEADEX 650 power supply, customized module line, when I abandoned the Qiao Sibo VR1 after thinking deeply about this module line where to go, if you buy a new chassis module The line must be customized, but if the custom before it will be abandoned again...
In fact, buying a thing to spend more money to nothing, useless cheaper to change hands is nothing, I'm afraid it is a complete waste in a corner ... so I thought of a way to let Zhenhua LEADEX650 still follow VR1 Together, if we want to re-use the VR1 chassis in the future, or to people who need it, it will not be wasted, so this time I chose to buy a new power supply and then re-customize a set of module lines.
I still lock the 650W series power supply, and hard to require 80PLUS certification at least to gold, full module, while meeting the style of the chassis, just mentioned that in line with the style of the chassis, then this power should be black, because the chassis is sideways, And the structure and the general chassis is somewhat different, so when the fan down towards the front of the module mouth, the sticker or logo must be positive ... After these wonderful requirements of me ... I finally chose the ANTEC EDGE650 this power supply, no one is not Conformity, and the same brand as the chassis I chose, comes from obsessive-compulsive disorder inexplicably.
However, this power module line will be cheap, the same store, LEADEX650 to more than 300, and EDGE650 the same wire as long as the beginning of the 200 ... ... bought back to check the power of the information looks like the market for several years, the program is more mature During the period, OEMs enhanced the design and the price was very stable.
PS power evaluation is very professional, but I don't dare to swear by itself, but I believe that you still have a good reason, there are cheap reasons for the cheap,
Antec Cube-Ekwb black ITX water-cooled chassis (Ekwb custom / 3mm aluminum / support 240 water-cooled / RGB conversion / support for long graphics card) 1299 yuan Jingdong direct link In the last article, I said that for a small ITX cannon is the choice of the chassis, only the chassis can determine the direction of development of other hardware, such as power, graphics, cooling, mold Group line and so on. The last time I chose Qiao Sibo VR1, of course, is the first of his beautiful, and the second is that it is fairly small, the third is personally think that the design of the vertical duct is more reasonable, and finally because his LEADEX power is white, and with It is also very beautiful, but in the end the VR1 is exquisite and beautiful but not compact. The vertical air duct is pressed by the graphics card to disperse the wind. The power supply is in line with expectations. To say that the beauty can speak of the past flowers, the problem of heat dissipation is almost a computer as a tool or toy. The most unbearable part is the result of this "reinvention."
This time I no longer pay attention to the ultimate compression space, because I don't want to be limited again because of the high temperature and limited performance or even dare to use... So I gave up the pursuit of the ultimate space compression in exchange for better heat dissipation tolerance, so the volume Slightly larger NZXT's MANTA and ANTEC's CUBE entered my field of vision and repeatedly compared Antec's CUBE.
Both CUBE and MANTA are very unique in shape, but I personally think CUBE is more suitable for my taste. First of all, the obvious difference between the ANTEC CUBE and the general chassis is the motherboard installation. If you face the front of the chassis, under normal circumstances the motherboard is installed and then the right side, and then through the left side of the see through the motherboard, but the CUBE motherboard is installed on the left, so It is through the right side to see the inside of the motherboard and the chassis. This chassis is like the "right side through the chassis," but the CUBE is transparent on three sides... This definition is a bit embarrassing.
However, there is a benefit to this chassis architecture. The fan side of the graphics card is facing upward. If you open a skylight on the top panel, you can let the design of the fan's fan side (ie, the front side) be unobstructed, especially for AUSA ROG STRIX. Generation and like GALAXY GAMER this generation fan with aperture video card. I have always felt that the fan's face of the graphics card is facing down like a night dress, so I would like to appeal again for the availability of a large number of chassis.
I think ANTEC knows this well. The transparent blackened skylight on the CUBE is a good proof, and it has colorful atmosphere lights. As for how cool it is, you can see them in the display section after installation. However, a chassis such as CUBE has a problem for the hardware. That is, all hardware is reversed. The memory that is arranged vertically and the heat sink that can adjust the direction are better. The belief LOGO on the side of the display card is definitely On the contrary, I believe that this makes many obsessive-compulsive disorder players unable to tolerate it... This just explains why I used GALAXY's GTX1070GAMER which can replace the "faith" LOGO's pros and cons.
In ensuring that the graphics card is "character positive", the power supply must also ensure that the "character is positive", because the general chassis should have the power supply is exposed on the left side, many power supply in order to cooperate with the left and right through the chassis, so ... ... Did not take into account the right side of the chassis ... After all, to meet the public's appetite, this is understandable, so the power to meet this condition is still relatively small, so I looked for a long time to find ANTEC EDGE this power supply.
This chassis from the unique design, in addition to open front and rear panels in order to facilitate the disassembly of plastic, other panels are metal, the overall material is good, after all, the thousand yuan chassis, side through the use of transparent smoked black acrylic, the same look The grade is not low, and the hardness is very good, I remember that before Ning America had a paragraph called the "King Man" host is also using this chassis, with the 7700 + GTX1070 uses a water-cooled.
CUBE is also known as the Water Cube. Although it is an ITX chassis, it is quite large. Many netizens have implemented split water cooling and MOD retrofits. The space is sufficient. In fact, the "EK" LOGO printed on the power supply bay can be found. Its water-cooled genes ... even if you do not want to use separate water, CUBE also supports an integrated 240 water cooling and an integrated 120 water cooling, and now the main board is not good overclocking, and the original heat of the 1700 is very beautiful, so I temporarily do not Cold water, if there is a chance in the future, can change to a better AM4 motherboard, do not rule out the possibility of split water cooling.
Well, so much to talk about, let's take a look at this chassis and let's start rebuilding the cannon.
We installed the detachable shell on the chassis before installation, reduced the weight, to avoid scratches, and then invited out an old friend ... before asking old friends, first introduce new friends - CUBE random gift 12CM fan. The fan's fan blade is silver mirrored, but also with a white LED, the market does not seem to buy, the sound is not large, the amount of air is fair, the key is very unique and very beautiful, if Antec can give two more It's even better if it's on the front panel.
Qiao Sibo FR201, our old friend, temporarily let him work as the chassis into the wind, back to study through the fan and then replace the two, the original can not be replaced, but the two fans may be dismantled too many times, one of the noise It's a bit obvious...
Biostar X370GTN, it is better to buy B350GTN, an effect ... but not out of stock ... ... not spend money.
Because MX-4 also wiped off the original fan's grease, the original fan's grease effect does not know, but for entangled players, it is recommended to buy a little better grease, MX-4 easy to smear, the effect is not bad. Novices do not buy 7783 such grease, very difficult to paint ... ...
For beginners, AMD's new radiator is slightly more difficult to install, it is recommended to install the method is to first press the radiator from above, slightly tighten one of the screws, and then press the radiator hand not loose, tighten the diagonal screws, Finally, tighten the four screws separately.
The 1700's heat sink has reached the memory, and a bit more will affect the memory installation.
The white is the new Lite-On T10, which was also installed on the X370GTN. The red is the old-style Liteon T10. The two are better than the white ones. X370GTN M.2 interface on the back of the motherboard, the front can not see the SSD, so I think the beautiful new T10 replaced with a large board, so look better.
The following is the hardware time, first install the baffle
Motherboard machine

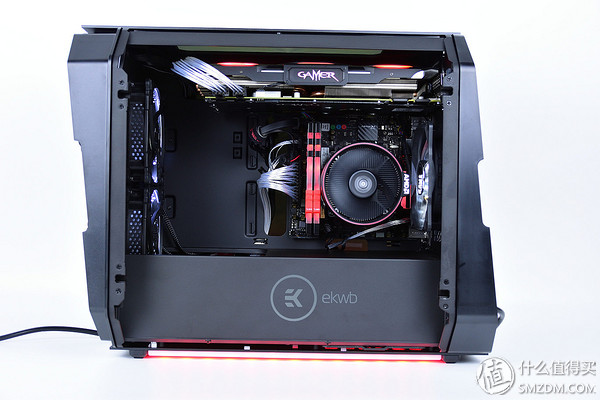

Seemingly seemingly empty, the space reserved for the left side of CUBE is relatively large, so the split water-cooled operability is relatively high.
Then install the power supply to facilitate planning and routing.
"Words are positive" â—¢
"Words are positive" â—¢
Then install the video card
"Words are positive" â—¢
Front wiring is simple
The mechanical hard disk uses a 2.5-inch notebook disk, which was introduced before, which saves space and reduces heat and is very quiet.
The overall design of CUBE is reasonable and the back line space is enough, so the installed wiring is fairly convenient.
OK, install front and rear panels
Close the side plate â—¢
Positive
Close front panel, finish â—¢
After untold hardships were finally completed, when I looked at my work, I felt a sense of accomplishment. Compared to the cannons that I had done with VR1 before, I was completely different in two different styles. The ones that were more refined, this was more Cooloool. (Single pun), I generally like the style of CUBE. Although the volume is a bit big, it is not an exaggeration to call it a cannon.
The favorite is this angle.
Light up the front
Silver fan, bright white AMD LOGO, original 1700 aperture, glowing graphics card and memory
PS In fact, motherboard, memory, graphics card, radiator, and the atmosphere of the chassis are RGB, the chassis needs to be adjusted by the power button, the other through the appropriate software to adjust it, because I personally like red and black color The following shows only the pure red light.
This is very positive, the fan aperture of the video card gives a feeling of a fin wing.

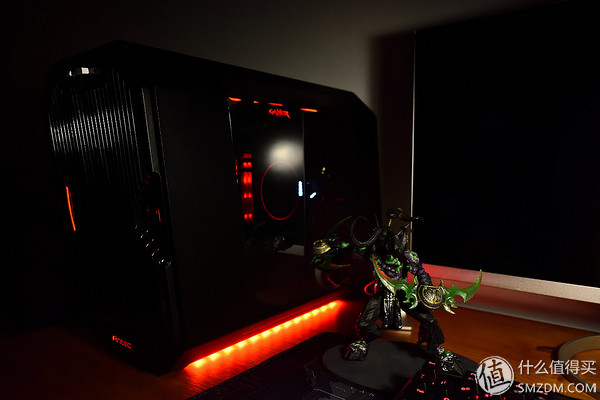

Table display
Illidan sent a congratulatory message
In terms of appearance, my satisfaction is much higher than that of VR1. Although there is a certain gap between the aliens and the player country, the overall effect is stronger, the style is unified, and the matching is reasonable. However, the appearance of OK is still not OK, and the operating temperature is too high to be the same as the last time. Next, let's take a look again. This “rebuilt†Ruilong host is still not a boiler.
The RYZEN 7 1700's CPU-Z screenshot shows that its full-core core frequency is only 3.2 GHz. It can be said that it is still a bit low, because this motherboard has limited overclocking capabilities, so I still do not do overclocking tests here, and I suggest that if you want to overclock, then you must Choose a better heat sink to avoid affecting the life of the CPU
GALAXY GTX1070GAMER's boost3.0 directly to the graphics card to work on the limit frequency, for example, this block 1070, the default frequency is 1620Mhz, but his steady-state operating frequency above 1800Mhz, even to 1900Mhz
The default running score for the Ruilong 1700
Here is the temperature test
Master Lu pressure test temperature graphics and CPU are similar at about 55 degrees Celsius, lower than the previous RX480 about 10 degrees â—¢
The whole power is only 200W.
Then the AIDA64 stability test, single baked FPU project, the temperature reached about 65 degrees, power 140W or so, because this does not involve the graphics card, so basically can be considered this is the CPU + motherboard power /85%, from the previous test The data analysis, CPU power should be about 80W at this time
With Furmark alone baked the graphics card, stress test some time later look at the graphics card temperature, if the graphics card can stay stable for a long time, you can prove that the temperature in the chassis is effectively controlled
By analyzing the statistical data of GPUZ, we can see that the frequency of GTX1070GAMER eventually stays at its nominal 1823Mhz.
GPU usage is relatively stable
The rotational speed of the fan is not high at less than 1800 rpm, which is much less than the 3,000 rpm of the RX580.
The temperature eventually stabilized at 75 degrees.
Through analyzing the above data, we can find that the GTX1070GAME is stable, and the temperature and fan speed have not reached the limit. It can be seen that the ventilation and heat dissipation effects in the chassis can be satisfied. Furmark roast chicken power close to 300W, because the Furmark GPU BUNNER is simply baked graphics card, so the graphics power is roughly in the vicinity of 200W, OK, personally feel no need to go on the test, play a few games, hand touch the chassis temperature, and no Obvious increase, it can be seen that this chassis can also achieve a good experience.
Finally came a whole machine
After re-adjustment ideas. The replacement has finally made my ITX platform reborn into a real cannon. 8 core 16-threaded Ruilong CPU, GTX1070 graphics card, 16G high-frequency dual-channel memory, 650W gold power supply, NVME high-speed SSD I believe that each item is full of performance, and do not have to worry about temperature, so that "small steel gun" has As
Of course, after these two toss, the money spent a lot, and there was a lot more inventory, but no matter whether the previous “failure†or the current “success†was at least one or more ideas for netizens, those who should buy Which should not be bought. Take Qiao Sibo VR1 before, if you use Ruilong or i5/I3/G4560 with GTX1050TI, the same structure can also create an entry-level cannon. Or better fan, public version of the graphics card, the same configuration of Rui Long + Polaris may also be able to improve a lot, in other words, there is no simple line and no hardware, only suitable and inappropriate collocation, in the end How to match more properly is the ultimate goal of my experiment.
To put aside the money that had been spent before, and roughly calculate it, the cost of this small steel cannon is already close to ten thousand yuan. Some people may say, "I'm close to ten thousand yuan, and I must be able to match up with the 1700+1080TI host. "But", but I want to remind you that eating fast food and eating a big meal are all the same. Maybe the fast food will be even more full ... but it won't save you money for a lifetime fast food. It's good to be happy. After all, it's hard for me to buy.
OK, the above is all the content, this period of graphic and text are very much, very grateful to see the last of you, hope to have useful content for you, look forward to your comments and exchanges, whether it is criticism or advice, life Inexhaustible, more than toss, July may be a hardware outbreak for a month, X299, VEGA, X399 These are not worth the end, we will have a period.
