The last generation of Logitech G-Series gaming mice has been around for a long time, and the G9x in the hands of the player has gradually withdrawn from the stage. I am looking for a gaming mouse to replace it. The lamp factory's products have already begun to look like dead snakes. There are also n snakes in the hands, but there are always some disappointments. Seeing the Logitech G502, the successor to the legendary G9x, catching up with RGB is now making its mark!
Related parameters:
1. Engine: The original phase 3366dm (photovoltaic), up to 12000DPI.
2. Rate of return: 125, 250, 500, 1000hz adjustable.
3. Button: 11 custom buttons, G LOGO light & DPI switch light at 1680W color can be customized.
4. Appearance size: 131 x 75 x 41mm
5. Maximum acceleration: >40G.
6. Maximum acceleration speed: >300ips
7. Weight: 120g, comes with five 3.6g V-shaped weights.
8. Others: Onboard 3 sets of memory user records.
Unpacking
The front of the box. The box seems to be simpler. There is no flip book design like the previous G502 (a box for simple test grips), which is more environmentally friendly than the older Logitech products.
Logitech G502 glare adaptive game mouse RGB mouse
The side of the box. Some simple parameters are introduced.
The back of the box. Orange G LOGO light (you know). The 1680w color mark is clearly visible in the upper right corner.
Remove the seal sticker and take it out.
Family portrait. Not many things: mouse body, weight box (containing five 3.6g weights), warranty card, manual, heavy metal content instructions.
Put a shape first. A bit fierce, compared with the old Logitech products in the past, the Logitech G series in 2015 can be described as a complete “face-liftâ€! At first glance it looks a little bit sloppy.
Left side. Abhorrent keys and gaps! The left skirt is in anti-skid treatment with an intaglio triangle.
Right side. The right skirt casing uses a TPE encapsulation design with triangular bumps for anti-slip treatment.
The mouse is on the top surface. Polish the "grooves" for decoration, making the entire mouse more dynamic and detailed.
The bottom of the mouse. The bottom design is simple, decorated with a large area of ​​triangular lines. The bald engine is in the middle.
The mouse is on the top surface. It can be seen that the mouse is designed to be right-handed (asymmetrical) and the wheel appears to be in the "right" position.
The right side of the mouse. The middle polishing groove design makes the left and right grooves completely different in material and processing (the TPE is on the left and the matte UV is on the right).
Casually pose for a few gestures!
Come again!
The color of the roller is very special. Like the G502, the all-alloy metal feels a bit cooler in winter.
The upper shell of the G LOGO lamp is a single body, which should be a separate cover, so only a UV matte skin treatment is performed.
This angle looks a bit like a spaceship. Look closely at the position of the G LOGO light, a bit like a double "shadow", is it nesting instead of carving? If this is the case, then the precision of this mold opening is slightly higher!
〓Working Details〓
1. A total of 7 main buttons at the top (calculate the button under the scroll wheel, left and right buttons scroll wheel), the left and right button board can see the small triangle arrow made by the UV process, indicating that the G502 RGB mouse still continues the old Logitech's scroll wheel to quickly browse web function , But this work seems to be applied to the current 1920px webpage is a bit out of date, and now many web pages are using the browser to render the page full screen, and rarely see the bottom of the web page with a slider.
2. The scroll wheel is pressed down. It is still a new window that everyone likes to open. It is very practical.
3. Behind the wheel is a physical button, which is mainly used to switch the wheel scale and electrodeless mode. Emphasize here that the top is very practical! ! The author has a Logitech G9x product in my hands. At the beginning, this switching function was done at the bottom of anti-humanity. For an office person, a lot of web browsing or exel tables, the top of the real-time switching with fit. This function button to do the bottom of the G9x is to let you choose to use the scale or promise, not real-time switching. Of course, switch to the electrodeless mode, the user can quickly scroll wheel users can self-test whether the roller is correct.
4. The G9 button is used to switch user records. Customizable 3 groups.
The above-mentioned scroll wheel quickly browses web pages right and left. It is only necessary to let the wheel be skewed to the left or right and it can be realized.
The current DPI indicator strip. To tell you the truth, I haven’t even understood that this is a paint? coating? What else is the treatment? At first glance, it looks like there is a layer of transparent plastic mold. The material is clear ABS (non-metal), although this part is seen as an "independent" part, but the Logitech official claims its solidity is no need to worry about. The indicator scale indicates the current DPI order (ie, increment) from back to front.
Left group details. There are a total of 3 buttons on the left side. The G5 and G4 buttons default to forward and backward. The G5 key down front button is a shift "replace" button for certain game play, ie tapping the stabilizing key mode. It seems to be a bit difficult to reach for a friend with a small hand, and some are on the front.
Some of the height of the top button is staggered.
Right skirt TPE coated rubber.
Logitech this is clearly showing its own open mold accuracy and ABS polishing process. It is a big factory!
The bottom shell is "lifted" outwards from the protruding side skirts because of the magnets. Of course, shaking is a loose phenomenon.
Counter weight box, 5 3.6g weights. What is the meaning of 3.6?
On the counterweight. With regard to this counterweight storehouse, after actually touching it, it is clear that it is hard rubber, so there is no need to worry about the weight falling out of the cabin.
Which God asked me, is this G LOGO light a separate nesting piece?
Carefully compare the difference between the left and right sides of the grooved polished trim.
Black long straight cable reinforcement section. Such a long, presumably because of the "sharp" design of the front.
About the cable. I have seriously contrasted the old G-Series Logitech mice with the current G502 RGB version of the cable. To be honest, there are many improvements. The cables are more solid and weaved more closely. U-port uses a non-gold-plated design, Logitech's old "policy." There is a shielded magnetic ring near the U port, and an SN warranty sticker. Cable ties are also necessary.
Test
The master's hand is still 18CM long. It can be seen that the "sniper key" basically belongs to just "the corner". Holding the position slightly behind, because if you are on the front, the index finger will play with the wheel slightly. Logitech's G502 RGB product ideally must be because of the test to the grip of most people, it deliberately left the key board to do very long.
〓Commercial mouse appearance comparison 〓
From left to right are Logitech MX Master Office Mouse (wireless commercially available 699), Logitech G502 RGB Optoelectronic Gaming Mouse (wired commercially available 449), Cooler Supreme Guardian 3 Photoelectric Gaming Mouse (wired commercially available 369), Logitech G9x Optoelectronics Gaming mouse (wired discontinued). You can compare the G502 RGB size.
Power on the computer
3 kinds of lighting solid color mode. Really RGB!
〓 Mouse Test 〓
Mainly tested the suitability of two kinds of fabrics. Both the cloth and the resin mat show that there is no compatibility defect, which is why the photoelectric engine is favored by game players for a long time.
The test results were performed on the Sairui 9HD resin mouse pad. The refresh rate of return is 1000. 12000DPI To be honest, too cool! ! I can't drop it! !
〓Driven display
Before the show, please shout with me, Logitech Dafa is good!
First and second screen driver related settings. Individual key setting adjustments, as well as user bank settings.
LED light effects display settings. I am puzzled about this "cost" in the drive! In fact, the pace of LED breathing rhythm, but why write "cost"?
The fourth screen, DPI settings, XY axis independent adjustment.

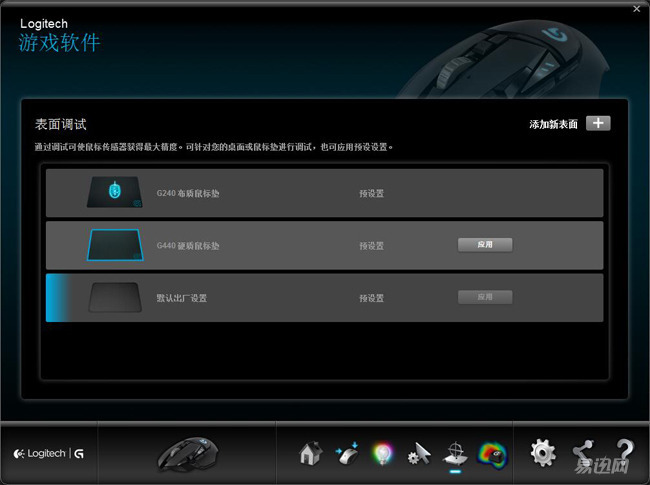

The fifth screen, mouse and mouse pad compatible debugging records.
The sixth screen, mouse button heat test.
7th screen, drive software setting items.
〓 game effect 〓
I have been playing CSGO recently and the CF is properly uninstalled. The cliché will not say anything, look at the record, this is nothing to explain. I only believe that if you hold a 9.9-free mouse, you can't beat the "lasting" record. The odds lie in mastery!
〓 〓 〓 〓
After Logitech has waited for N years, it has finally released new products in 2014. G502 RGB is also a G502 after "sublimation". The advantages are not recapitulated, and disadvantages are naturally present. If you ask if this version of the main RGB is more necessary than the normal version of the G502? My answer is "very necessary!" 2016 is a year when RGB is surging!
The Spring Festival is approaching. The lord hereby gives an early morning greeting to everyone! happy New Year! Dear friends, you should add a piece of peripheral equipment to yourself. After all, hard work for a year, work is important, and family and entertainment are more important. It's time to relax. Any errors or inadequacies in the text should be corrected.
